Seven-Lobed Knobs EN 636.4

ELESA original design
code: ELK.p

Color: DSG - Black-gray, RAL 7021, matte finish

Product Family Ergostyle

Ergostyle standard parts combine functional and ergonomic operation with attractive appearance. Numerous design awards are proof of the high quality claim. The hallmark of Ergostyle products are five small dots.

functional, ergonomic design
ultimate design quality (numerous design awards)

Show all Ergostyle products

Standard Sheet EN 636.4 Print This Page Plastic Characteristics

Product description

The operator's palm rests on the slightly concave front surface of the EN seven-lobed knobs 636.4 , while the fingers are offered a natural ergonomic position inside the rear lobes of the knob. In this position, the operator can apply maximum torque with minimum force.

Resistant to solvents, oils, grease and other chemical agents.

Specification

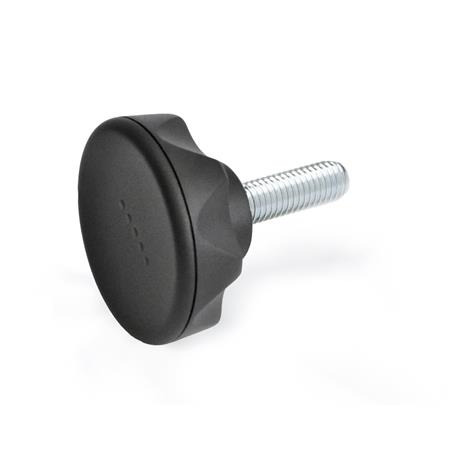

Seven-lobed knob
Plastic
Technopolymer (Polyamide PA)

Glass fiber reinforced
Temperature resistant up to 266 °F (130 °C)
Black-gray, matte finish, similar to RAL 7021

Color of the upper part:
Black-gray, RAL 7021, matte finishDSG DSG
Orange, RAL 2004, matte finishDOR DOR
Gray, RAL 7035, matte finishDGR DGR
Yellow, RAL 1021, matte finishDGB DGB
Blue, RAL 5024, matte finishDBL DBL
Red, RAL 3000, matte finishDRT DRT
Green, RAL 6017, matte finishDGN DGN

Lobed knob upper part is ultrasonically welded to lower part

Threaded stud
Steel, zinc plated, blue passivated finish

RoHS

Part Number DSG	Part Number DOR	Part Number DGR	Part Number DGB	Part Number DBL	Part Number DRT	Part Number DGN	d₁	d₂	Length l	d₃	h₁	h₂


636.4-45-M8-20-DSG	636.4-45-M8-20-DOR	636.4-45-M8-20-DGR	636.4-45-M8-20-DGB	636.4-45-M8-20-DBL	636.4-45-M8-20-DRT	636.4-45-M8-20-DGN	1.77	M 8	0.79	0.83	1.02	0.39
636.4-45-M8-30-DSG	636.4-45-M8-30-DOR	636.4-45-M8-30-DGR	636.4-45-M8-30-DGB	636.4-45-M8-30-DBL	636.4-45-M8-30-DRT	636.4-45-M8-30-DGN	1.77	M 8	1.18	0.83	1.02	0.39
636.4-45-M10-20-DSG	636.4-45-M10-20-DOR	636.4-45-M10-20-DGR	636.4-45-M10-20-DGB	636.4-45-M10-20-DBL	636.4-45-M10-20-DRT	636.4-45-M10-20-DGN	1.77	M 10	0.79	0.83	1.02	0.39
636.4-45-M10-30-DSG	636.4-45-M10-30-DOR	636.4-45-M10-30-DGR	636.4-45-M10-30-DGB	636.4-45-M10-30-DBL	636.4-45-M10-30-DRT	636.4-45-M10-30-DGN	1.77	M 10	1.18	0.83	1.02	0.39
636.4-45-M10-40-DSG	636.4-45-M10-40-DOR	636.4-45-M10-40-DGR	636.4-45-M10-40-DGB	636.4-45-M10-40-DBL	636.4-45-M10-40-DRT	636.4-45-M10-40-DGN	1.77	M 10	1.57	0.83	1.02	0.39
636.4-56-M8-20-DSG	636.4-56-M8-20-DOR	636.4-56-M8-20-DGR	636.4-56-M8-20-DGB	636.4-56-M8-20-DBL	636.4-56-M8-20-DRT	636.4-56-M8-20-DGN	2.20	M 8	0.79	1.04	1.14	0.43
636.4-56-M8-30-DSG	636.4-56-M8-30-DOR	636.4-56-M8-30-DGR	636.4-56-M8-30-DGB	636.4-56-M8-30-DBL	636.4-56-M8-30-DRT	636.4-56-M8-30-DGN	2.20	M 8	1.18	1.04	1.14	0.43
636.4-56-M8-40-DSG	636.4-56-M8-40-DOR	636.4-56-M8-40-DGR	636.4-56-M8-40-DGB	636.4-56-M8-40-DBL	636.4-56-M8-40-DRT	636.4-56-M8-40-DGN	2.20	M 8	1.57	1.04	1.14	0.43
636.4-56-M10-20-DSG	636.4-56-M10-20-DOR	636.4-56-M10-20-DGR	636.4-56-M10-20-DGB	636.4-56-M10-20-DBL	636.4-56-M10-20-DRT	636.4-56-M10-20-DGN	2.20	M 10	0.79	1.04	1.14	0.43
636.4-56-M10-30-DSG	636.4-56-M10-30-DOR	636.4-56-M10-30-DGR	636.4-56-M10-30-DGB	636.4-56-M10-30-DBL	636.4-56-M10-30-DRT	636.4-56-M10-30-DGN	2.20	M 10	1.18	1.04	1.14	0.43
636.4-56-M10-40-DSG	636.4-56-M10-40-DOR	636.4-56-M10-40-DGR	636.4-56-M10-40-DGB	636.4-56-M10-40-DBL	636.4-56-M10-40-DRT	636.4-56-M10-40-DGN	2.20	M 10	1.57	1.04	1.14	0.43
636.4-56-M12-30-DSG	636.4-56-M12-30-DOR	636.4-56-M12-30-DGR	636.4-56-M12-30-DGB	636.4-56-M12-30-DBL	636.4-56-M12-30-DRT	636.4-56-M12-30-DGN	2.20	M 12	1.18	1.04	1.14	0.43
636.4-56-M12-40-DSG	636.4-56-M12-40-DOR	636.4-56-M12-40-DGR	636.4-56-M12-40-DGB	636.4-56-M12-40-DBL	636.4-56-M12-40-DRT	636.4-56-M12-40-DGN	2.20	M 12	1.57	1.04	1.14	0.43
636.4-56-M12-50-DSG	636.4-56-M12-50-DOR	636.4-56-M12-50-DGR	636.4-56-M12-50-DGB	636.4-56-M12-50-DBL	636.4-56-M12-50-DRT	636.4-56-M12-50-DGN	2.20	M 12	1.97	1.04	1.14	0.43
636.4-70-M10-30-DSG	636.4-70-M10-30-DOR	636.4-70-M10-30-DGR	636.4-70-M10-30-DGB	636.4-70-M10-30-DBL	636.4-70-M10-30-DRT	636.4-70-M10-30-DGN	2.76	M 10	1.18	1.28	1.38	0.51
636.4-70-M10-40-DSG	636.4-70-M10-40-DOR	636.4-70-M10-40-DGR	636.4-70-M10-40-DGB	636.4-70-M10-40-DBL	636.4-70-M10-40-DRT	636.4-70-M10-40-DGN	2.76	M 10	1.57	1.28	1.38	0.51
636.4-70-M10-50-DSG	636.4-70-M10-50-DOR	636.4-70-M10-50-DGR	636.4-70-M10-50-DGB	636.4-70-M10-50-DBL	636.4-70-M10-50-DRT	636.4-70-M10-50-DGN	2.76	M 10	1.97	1.28	1.38	0.51
636.4-70-M12-30-DSG	636.4-70-M12-30-DOR	636.4-70-M12-30-DGR	636.4-70-M12-30-DGB	636.4-70-M12-30-DBL	636.4-70-M12-30-DRT	636.4-70-M12-30-DGN	2.76	M 12	1.18	1.28	1.38	0.51
636.4-70-M12-40-DSG	636.4-70-M12-40-DOR	636.4-70-M12-40-DGR	636.4-70-M12-40-DGB	636.4-70-M12-40-DBL	636.4-70-M12-40-DRT	636.4-70-M12-40-DGN	2.76	M 12	1.57	1.28	1.38	0.51
636.4-70-M12-50-DSG	636.4-70-M12-50-DOR	636.4-70-M12-50-DGR	636.4-70-M12-50-DGB	636.4-70-M12-50-DBL	636.4-70-M12-50-DRT	636.4-70-M12-50-DGN	2.76	M 12	1.97	1.28	1.38	0.51

d₁	d₂	Length l	d₃	h₁	h₂

1.77	M 8	0.79	1.18	-	0.83	1.02	0.39
1.77	M 10	0.79	1.18	1.57	0.83	1.02	0.39
2.20	M 8	0.79	1.18	1.57	1.04	1.14	0.43
2.20	M 10	0.79	1.18	1.57	1.04	1.14	0.43
2.20	M 12	1.18	1.57	1.97	1.04	1.14	0.43
2.76	M 10	1.18	1.57	1.97	1.28	1.38	0.51
2.76	M 12	1.18	1.57	1.97	1.28	1.38	0.51

d₁

d₂

Length l

d₃

h₁

h₂

1.77

M 8

0.79

1.18

0.83

1.02

0.39

1.77

M 10

0.79

1.18

1.57

0.83

1.02

0.39

2.20

M 8

0.79

1.18

1.57

1.04

1.14

0.43

2.20

M 10

0.79

1.18

1.57

1.04

1.14

0.43

2.20

M 12

1.18

1.57

1.97

1.04

1.14

0.43

2.76

M 10

1.18

1.57

1.97

1.28

1.38

0.51

2.76

M 12

1.18

1.57

1.97

1.28

1.38

0.51
